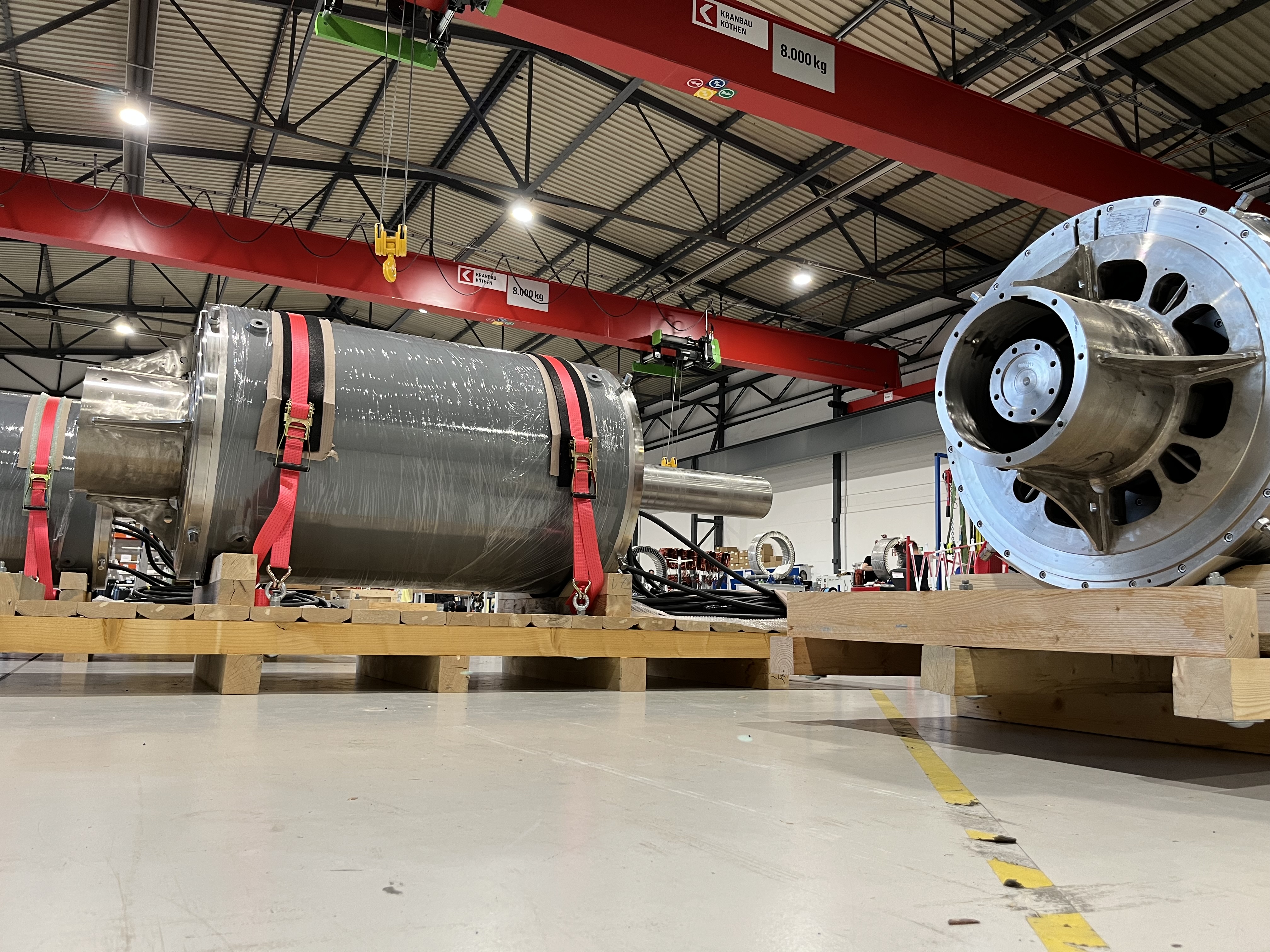

Consistently high efficiency over wide speed/torque ranges in continuous operation – our weight-saving aluminium generators for outputs up to 700 kW achieve a continuous efficiency of 98 % with nominal output in continuous operation. For the user, this means that the highest level of energy efficiency is met in accordance with every current energy saving guideline worldwide.
We design special generators outside our standard range, such as solutions for river and hydroelectric power plants, specifically according to customer requirements: We supply PM generators with an overflow speed of up to 2.5 times.
Operation even under water with passive water cooling and all-phase short-circuit protection are the decisive criteria in practical use.
Die PMSG werden in Anlehnung an die gültigen Normen entwickelt und hergestellt und können weltweit zum Einsatz kommen. Da wir unser Qualitätsmanagementsystem, die ISO 9001 von der DNV jährlich zertifiziert bekommen, sind wir ein sehr guter Partner für maritime Anwendungen mit all den bekannten Klassenabnahmen.
Technical Details at a Glance:
| Ambient temperature | -10°C - + 45°C |
|---|---|
| Installation height | 1000m |
| Sizes/Diameters | 380 mm - 1570 mm |
| Power range | 5 - 2800 kW |
| Speed range | 0 - 3400 rpm |
| Torque | bis 70000 Nm |
| Design | Horizontal or vertical |
| Degrees of protection | IP00 to IP69 |
| Cooling types | Water jacket, IC71W acc. with EN 60034-6 |
| Optional | Encoder, Resolver, Holdbrake, Bearing monitoring etc. |
In the online configurator for our standard program, the individually required parameters can be set and the exact right generator can be configured.
